3201 Pressure Transmitter for Mining Truck Struts
Mining trucks operate in some of the toughest environments in the world. These heavy-duty vehicles face extreme temperatures, constant vibration, high shock loads, dust, mud, rain, and harsh operating conditions every day.
The hydraulic systems used for steering, suspension, brakes, and dump body control are continuously exposed to pressure fluctuations and sudden pressure spikes caused by shifting loads.
To maintain safe and efficient operation, mining truck manufacturers require accurate monitoring of both pressure and temperature within their hydraulic systems. This is where the 3201 Pressure Transmitter from Gems Sensors provides an ideal solution.
Why Pressure and Temperature Monitoring is Important
Modern mining vehicles use advanced electronic control systems that require real-time data from various sensors. While pressure monitoring has always been important, vehicle manufacturers are increasingly demanding temperature measurement as well.
For example, many mining trucks use nitrogen-charged cylinders for braking systems and hydraulic accumulators. Monitoring only the pressure is not enough. Changes in temperature can directly affect the gas pressure and overall system performance.
By measuring both pressure and temperature, operators can:
- Improve vehicle safety.
- Increase equipment reliability.
- Detect abnormal operating conditions early.
- Reduce maintenance costs.
- Extend component life.
The Challenge
Mining truck manufacturers need a rugged sensor capable of surviving harsh operating conditions while providing both pressure and temperature measurements.
Traditionally, this required:
- One sensor for pressure measurement.
- A second sensor for temperature measurement.
- Additional mounting ports.
- Extra wiring and installation work.
- Increased risk of hydraulic leaks.
- Higher maintenance and installation costs.
Finding a single heavy-duty sensor that can reliably measure both parameters in extreme mining environments has been a major challenge.
The Solution – Gems 3201 Pressure Transmitter
The 3201 Pressure Transmitter from Gems Sensors offers a smart dual-output solution by measuring both pressure and temperature from a single device.
The sensor uses advanced thin-film strain gauge technology to measure pressure accurately. The integrated temperature sensing element is built directly into the sensing system, allowing simultaneous measurement of the media temperature, whether the medium is hydraulic oil, fluid, gas, or other process media.
As a result, manufacturers only need one installation port while receiving two critical outputs.
Benefits of the Dual Output Design
- Reduced installation time.
- Lower system complexity.
- Fewer leak points.
- Lower maintenance costs.
- Improved reliability.
- Better overall system monitoring.
Key Features of the 3201 Pressure Transmitter
1. Dual Output Technology
The sensor provides both pressure and temperature measurements from a single compact device.
2. Heavy-Duty Construction
Designed to withstand severe pressure spikes commonly found in mining and hydraulic applications.
3. Excellent Long-Term Stability
The sensor maintains accuracy over long periods, minimizing the need for recalibration and replacement.
4. Thermal Compensation
Delivers consistent performance across a wide operating temperature range.
5. Stainless Steel Construction
The 304 stainless steel housing provides excellent resistance to corrosive fluids, gases, and harsh industrial environments.
6. IP67 Environmental Protection
Protected against dust ingress and heavy water spray, making it suitable for outdoor and mobile equipment applications.
7. Enhanced Electrical Protection
Built-in protection against:
- RFI (Radio Frequency Interference)
- EMI (Electromagnetic Interference)
- ESD (Electrostatic Discharge)
This ensures a stable and reliable signal even in electrically noisy environments.
8. Precision Computer-Controlled Calibration
Every sensor is factory calibrated using advanced automated processes, providing excellent unit-to-unit consistency.
9. Superior Shock and Vibration Resistance
The sensor successfully passes:
- 40G vibration testing
- IEC free-fall testing
This rugged design makes it ideal for mining trucks and other off-highway vehicles.
Applications of the 3201 Pressure Transmitter
The versatility of the 3201 Pressure Transmitter makes it suitable for a wide range of demanding industrial applications.
1. Mining Trucks

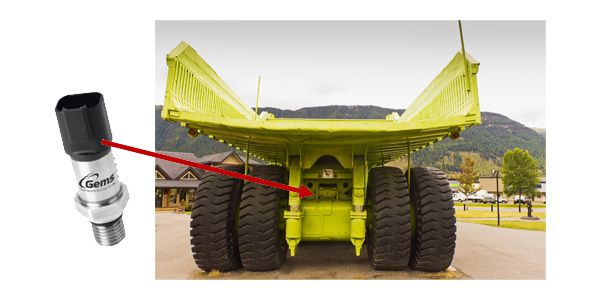

Monitoring hydraulic systems, brake accumulators, and suspension systems.
2. Off-Highway Vehicles
Construction equipment, loaders, excavators, and earth-moving machinery.
3. Transportation
Railway and train hydraulic systems.
4. Alternative Energy Systems
Hydraulic and fluid monitoring in renewable energy equipment.
5. Marine Applications
Pressure and temperature monitoring in marine hydraulic systems.
6. Oil and Gas Industry
Harsh environment pressure monitoring for critical applications.
7. Power Generation
Hydraulic and fluid control systems in power plants.
Why Choose SWME for 3201 Pressure Transmitter Solutions?
As one of the trusted 3201 Pressure Transmitter suppliers and leading 3201 Pressure Transmitter suppliers in UAE, SWME provides high-quality Gems Sensors products for demanding industrial applications.
Our team helps customers select the right pressure and temperature monitoring solutions for:
- Mining equipment.
- Mobile hydraulic systems.
- Oil and gas operations.
- Marine applications.
- Industrial process systems.
- Power generation facilities.
Contact Us
Looking for a reliable 3201 Pressure Transmitter supplier in UAE?
SWME Control Systems Trading LLC offers genuine Gems Sensors solutions, technical support, and fast delivery across the UAE and Middle East.
Contact our team for product selection and application support.
