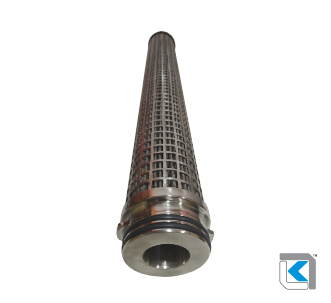

The KGT Wire Mesh Metal Filter cartridge has a rigid pore structure enabling removal of particles at higher differential pressures with consistent efficiency.

Apart from the wide chemical compatibility, the filters are suitable for either gas or liquid having a high dirt holding capacity.

The KGT Wire Mesh Metal Filter cartridge is available in SS304/SS316 and SS316L.

Due to wide range to media selection, a variety of liquids from acids to alkalis; from seawater to process water; and in gases from air to fuel gas to hot exhaust gases.

Standard dimensions of 2.5” outer diameter and 1” internal diameter ensures fitment in most standard housings with varied length availability. (other dimensions are available on request)

Available in 10 / 20 / 30 / 40 / 60 inches length. (Other lengths available on request.)

Solid internal core ensures optimal strength and withstanding of differential pressure.

For Normal Flow from Outside to Inside for liquids compatible with the filter media, the maximum differential pressure is 1.5 bard (22 psid) @ 75⁰C.

Corrosive Fluids

Steam

Thermic Fluids

Amine, Glycol

High Temperature applications in liquids and gases

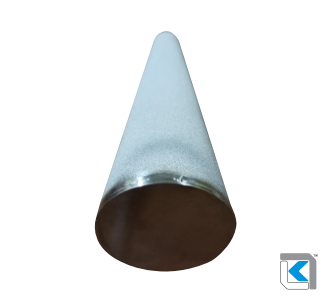

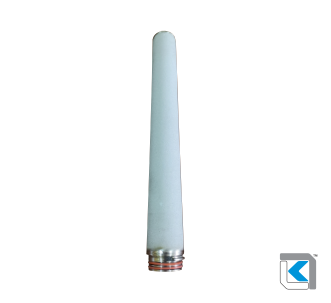

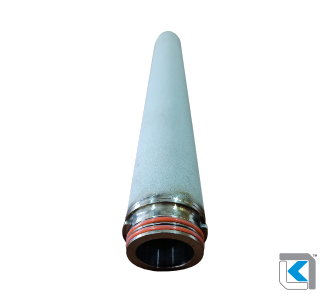

The KGT Powdered Sintered Stainless Steel Filter cartridge has a constant pore structure achieved with controlled sintering of SS metal powder imparting it mechanical strength and wide range of chemical compatibility with consistent efficiency.

Apart from the wide chemical compatibility, the filters are suitable for either gas or liquid having a high dP holding capacity.

The KGT Powdered Sintered Stainless Steel Metal Filter cartridge is available in SS304/SS316 and SS316L.

Due to wide range to media selection, a variety of liquids from acids to alkalis; from seawater to process water; and in gases from air to fuel gas to hot exhaust gases.

Standard dimensions of 2.5” outer diameter and 1” internal diameter ensures fitment in most standard housings with varied length availability. (other dimensions are available on request)

Available in 10 / 20 / 30 / 40 / 60 inches length. (Other lengths available on request.)

A depth ranging between 2-3.5 mm os sintered stainless steel ensures optimal strength to withstand differential pressure.

Available in both absolute and nominal ratings

For Normal Flow from Outside to Inside for liquids compatible with the filter media, the maximum differential pressure is 1.5 bard (22 psid) @ 75⁰C.

Corrosive Fluids

Steam

Thermic Fluids

Amine, Glycol

High Temperature applications in liquids and gases
